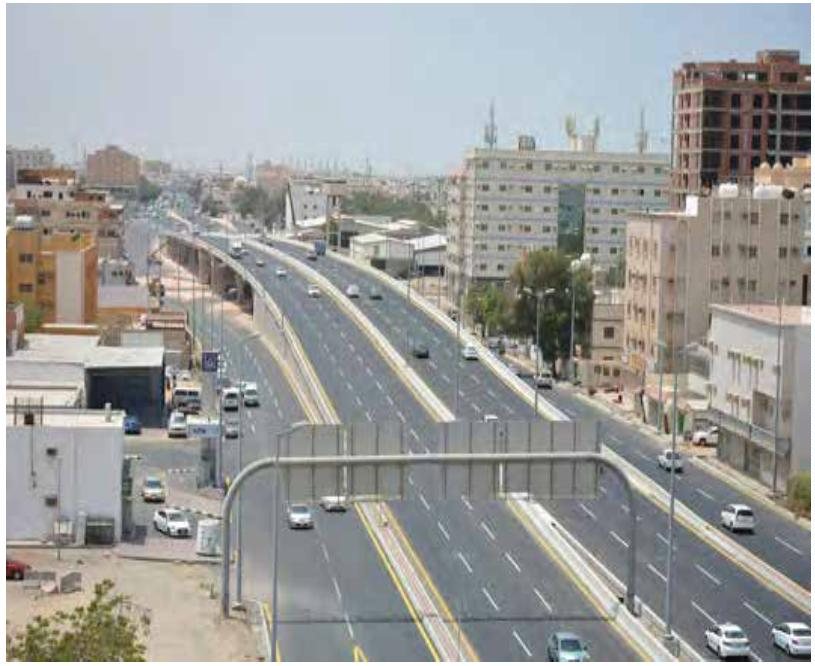

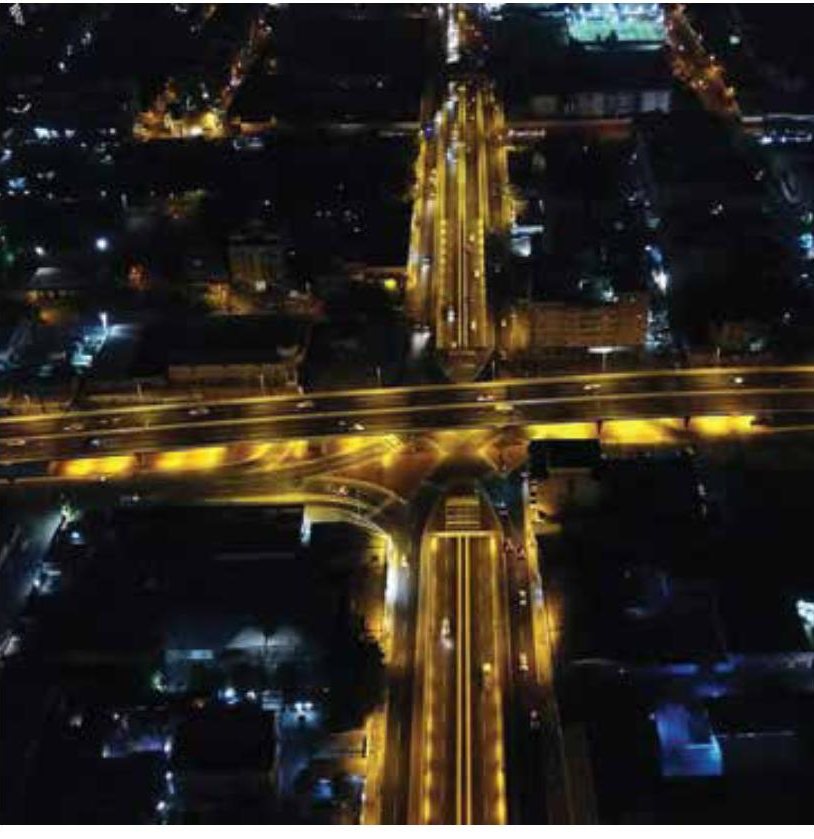

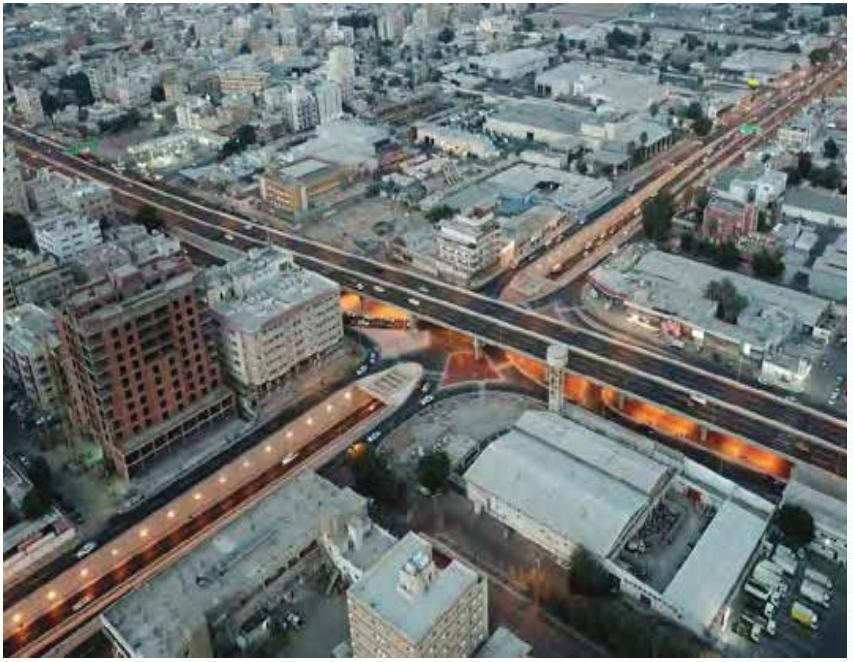

Bridge & Underpassat Pr. Majed Road
A 700 m bridge on pre-cast post-tensioned U-girders over an 800 m top-down underpass, completed February 2018.
05 / 07
Specification
- Contract value
- 82,800,000 SAR
- Completion date
- February 2018
- Role
- Subcontractor
- Volume of concrete
- 35,000 m³
- Excavation
- 30,000 m³
- Steel
- 6,000 tons
Scope
1/ Bridge
- —700 m length, 3 lanes in each direction
- —Pre-cast post-tensioned girders (U shape)
- —Ramps retaining: MSE walls
2/ Underpass
- —800 m length, 2 lanes in each direction
- —Top-down construction for the closed area
- —Strut system for the open part
